Enabling Resizable BAR on an X99 board for the Arc B580

Modding the BIOS on the Huananzhi X99-BD4 (the board from the 200 Bucks Inference Machine) so my Arc B580 gets Resizable BAR, plus a 16-byte corruption UEFITool snuck in along the way. October 2026.

X99 build series: The build · mistral.rs vs llama.cpp · Four LLMs compared · Wake on LAN · ReBar BIOS mod · CMP 40HX unlock · V100 + VFIO

Stock X99 firmware has no Resizable BAR, which Intel Arc cards need for full performance. I inserted the ReBarDxe driver into the board's BIOS, caught a 16-byte corruption that UEFITool introduced in a volume I never edited, fixed it, and flashed the board. GPU-Z now reports ReBar as Enabled on the B580.

Disabled → Enabled Resizable BAR on the Arc B580, as reported by GPU-Z 16 bytes Silently wiped by UEFITool in a volume I never edited, caught by a binary diff 2,578 bytes The only change in the final image: the ReBarDxe driver 9182 Unigine Superposition, 1080p High, after the mod

Why

Intel recommends Resizable BAR (ReBar) for Arc cards because performance drops noticeably without it, and the stock X99 firmware doesn't have the option. I followed the ReBarUEFI wiki to insert its open source ReBarDxe driver into the board's AMI Aptio V firmware.

ItemDetails
MotherboardHuananzhi X99-BD4 Gaming, Intel B85 (Lynx Point) chipset
FirmwareAMI Aptio V, version 5.11 (11/01/2020), UEFI
Flash chip16 MB Winbond W25Q128BV
CPUIntel Xeon E5-2678 v3 (12 cores, 24 threads)
Memory16 GB DDR4-2133 ECC RDIMM, dual channel
GPUASRock Intel Arc B580 Challenger, 12 GB GDDR6, PCIe 4.0 x8 running at 3.0 x8
ToolsUEFITool 0.28, UEFIPatch, Intel FPT 9.1, ReBarState, GPU-Z, HWiNFO64

Before the mod, GPU-Z reported Resizable BAR as Disabled.

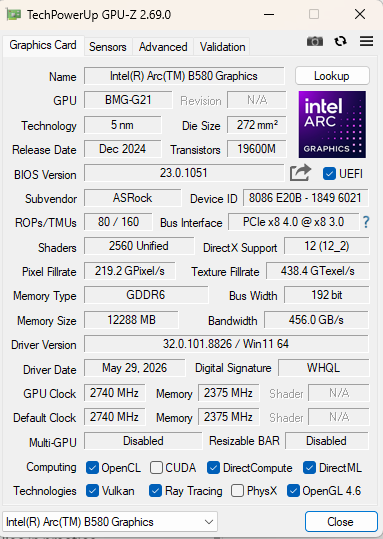

GPU-Z before the mod showing Resizable BAR Disabled GPU-Z before the mod showing Resizable BAR Disabled

Inserting the ReBarDxe driver

I started from full_backup.bin, a 16 MB dump of the whole flash chip including the Intel flash descriptor, and never touched it so I'd have something to compare everything against.

  1. I opened a copy in UEFITool 0.28, the last version that can insert modules.
  2. A header-only GUID search for the PciBus driver returned one hit, identifying the single DXE volume: offset 0x890000, 5 MB, 236 files, about 2,038 KB free.
  3. At the end of that volume I used Insert after on the last DXE driver to add ReBarDxe.ffs, and saved the result as patched_image.rom.
  4. The 2,578-byte driver landed at offset 0xB92678, leaving about 2,035 KB free.

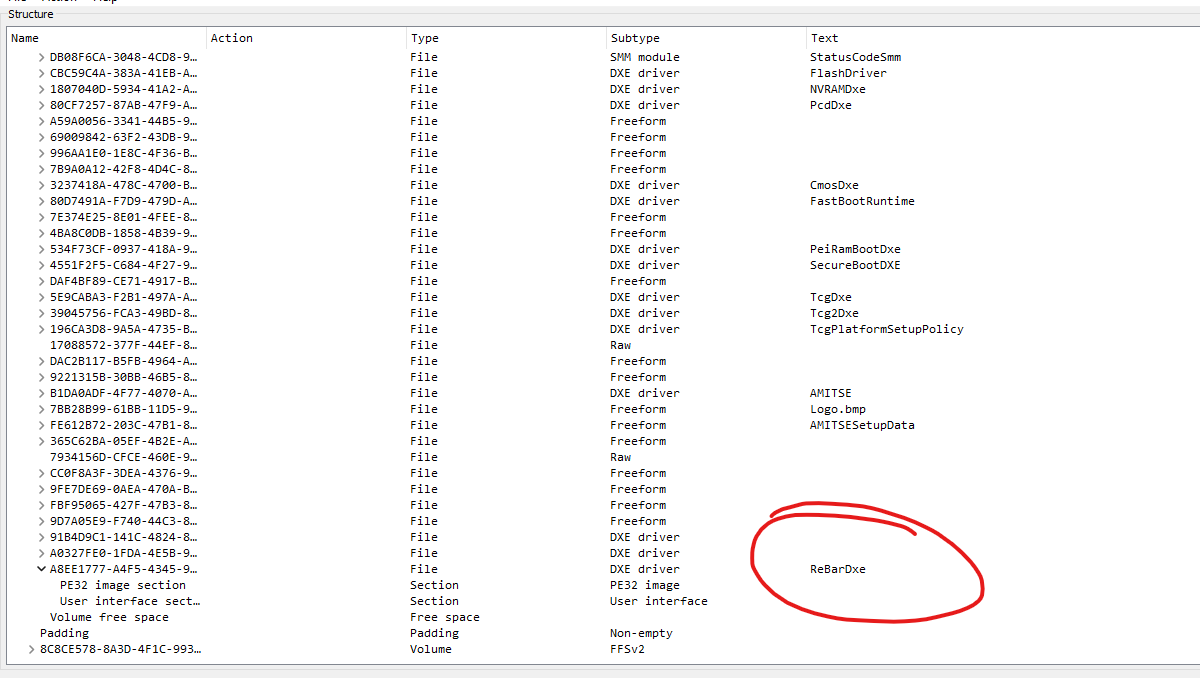

UEFITool structure view with ReBarDxe inserted at the end of the DXE volume UEFITool structure view with ReBarDxe inserted at the end of the DXE volume

UEFIPatch: no patches needed

UEFIPatch, run with the patches.txt from the ReBarUEFI repository, reported "No patches can be applied to input file". I also tested every pattern against the decompressed modules by hand and none matched. Disassembly of PciBus showed a vendor variant with a 64-bit MMIO limit of 0x8FFFFFFFF (about 36 GB), well above the 16 GB limit the stock patch targets. The wiki treats this as an acceptable outcome for these X99 boards.

Verification: a 16-byte corruption from UEFITool

I diffed the backup against patched_image.rom byte by byte and got two changed regions. I only made one of them.

OffsetWhat changedExpected?
0xB92678–0xB93089The new ReBarDxe file, in what was empty space. Valid checksums, and identical to the official ReBarUEFI 0.3 release apart from the state byte UEFITool sets for erase polarity.Yes
0xFFD000–0xFFD00F16 bytes inside a pad file in the last firmware volume (PEI modules and SEC core) overwritten with FF.No

The original bytes, EA D0 FF 00 F0, decode to jmp far F000:FFD0. This is a constant from GenFv, the EDK2 tool that builds firmware volumes: a small jump stub on a 4 KB boundary, used as an entry point when starting the secondary CPU cores. I found no proof this firmware uses it, but on a 12-core Xeon losing it could mean a hang during CPU initialization, so I wasn't going to risk it.

On save, UEFITool 0.28 rebuilt the neighboring volume and regenerated the pad file as empty. This is a known bug. The wiki has a pad file check for it, but points only at the volume you modified. I ruled out free space (over 2 MB remained) and a firmware-wide checksum (the block's last two bytes are a checksum, but they cover only that block).

To fix it I copied the 16 bytes back from the backup to produce patched_image_fixed.rom. Its only difference from the original firmware is the ReBarDxe file. All four firmware volumes parse cleanly, fc /b confirmed the compare, and the flash descriptor, ME, NVRAM, microcode and reset vector are identical to the backup.

SHA-256 of the final image: 3d96d415c5246541c85570982d00b78945c11adb1243fd78be0ac90d9c4f52f0

Flashing

I wrote the fixed image with Intel FPT 9.1 from Windows on the board itself, limited to the BIOS region. FPT rewrote only the blocks that differed: the two 4 KB blocks holding ReBarDxe, plus NVRAM blocks that had changed since the backup. The boot block was untouched and verification passed.

Result: ReBar enabled on the B580

  1. In BIOS setup I enabled Above 4G Decoding and disabled CSM. Without both, the system will not POST with the GPU.
  2. In Windows I ran ReBarState and entered 10, which sets the maximum BAR size to 210 MB = 1 GB.
  3. After a reboot, GPU-Z reported Resizable BAR as Enabled.

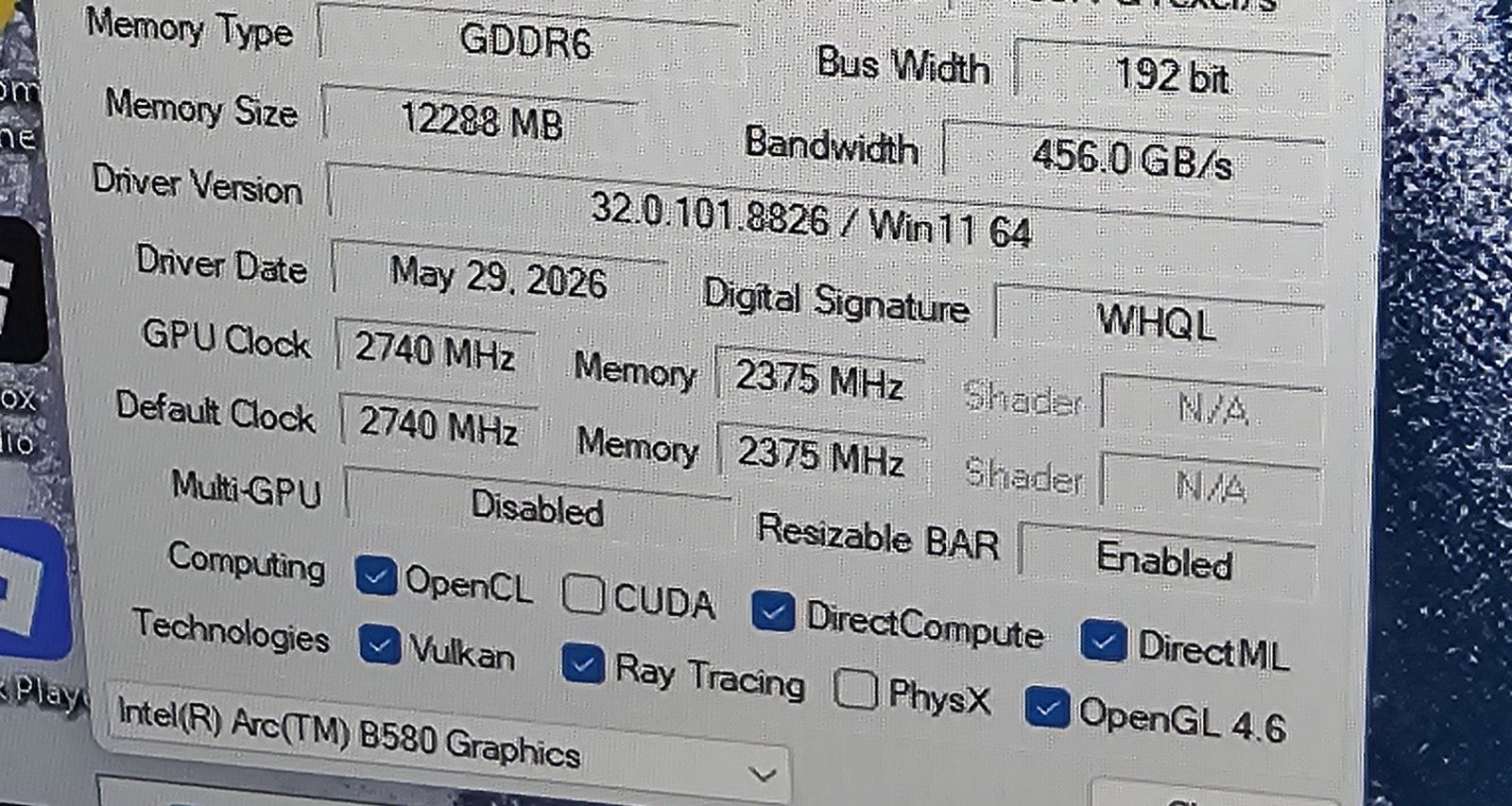

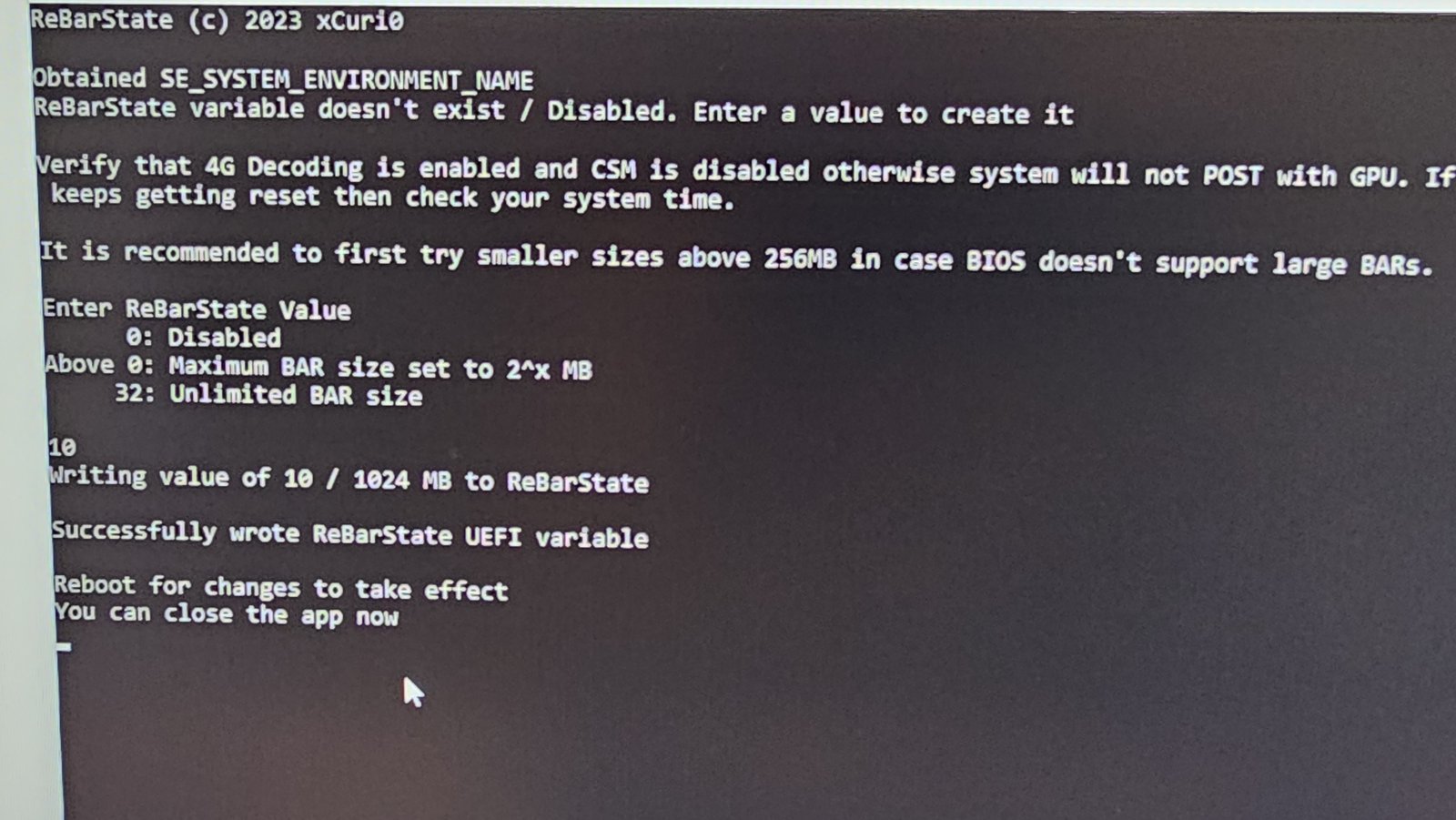

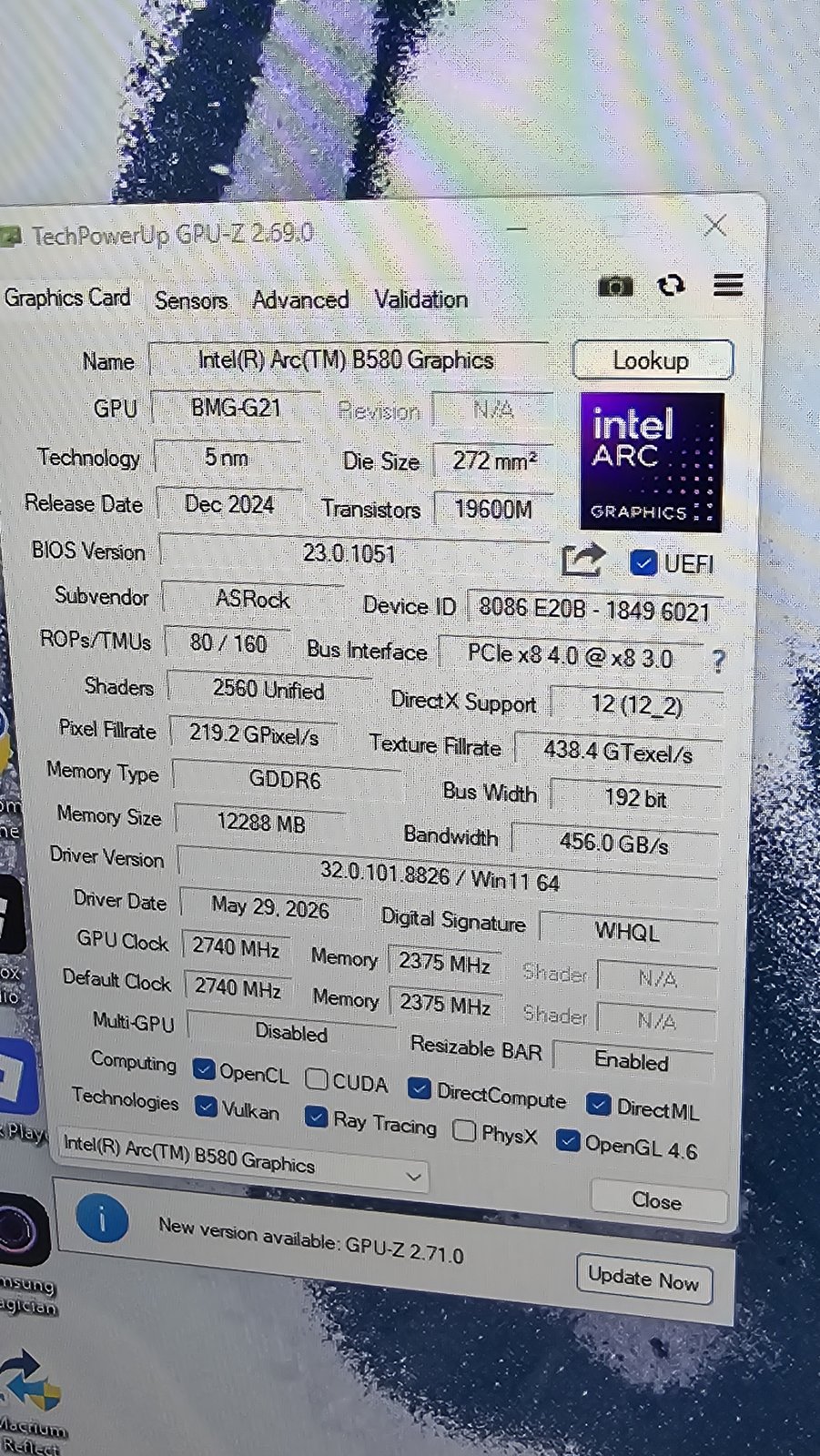

ReBarState writing a value of 10 (1024 MB) to the UEFI variable ReBarState writing a value of 10 (1024 MB) to the UEFI variable GPU-Z after the mod showing Resizable BAR Enabled on the Intel Arc B580 GPU-Z after the mod showing Resizable BAR Enabled on the Intel Arc B580

As a stability check I ran Unigine Superposition 1.1 at 1080p High (OpenGL): a score of 9182, with 48.03 min, 68.68 average and 104.34 max FPS.

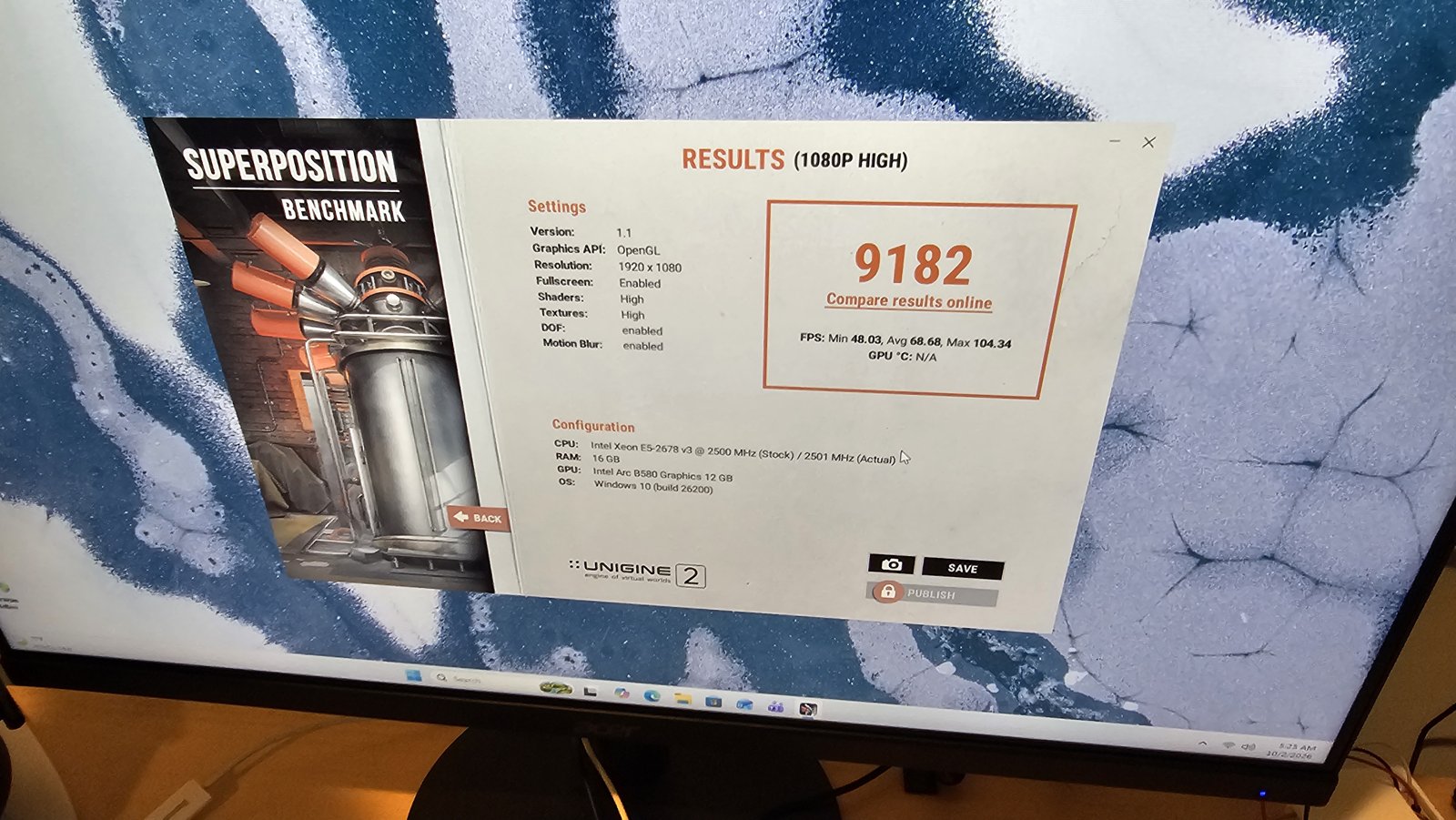

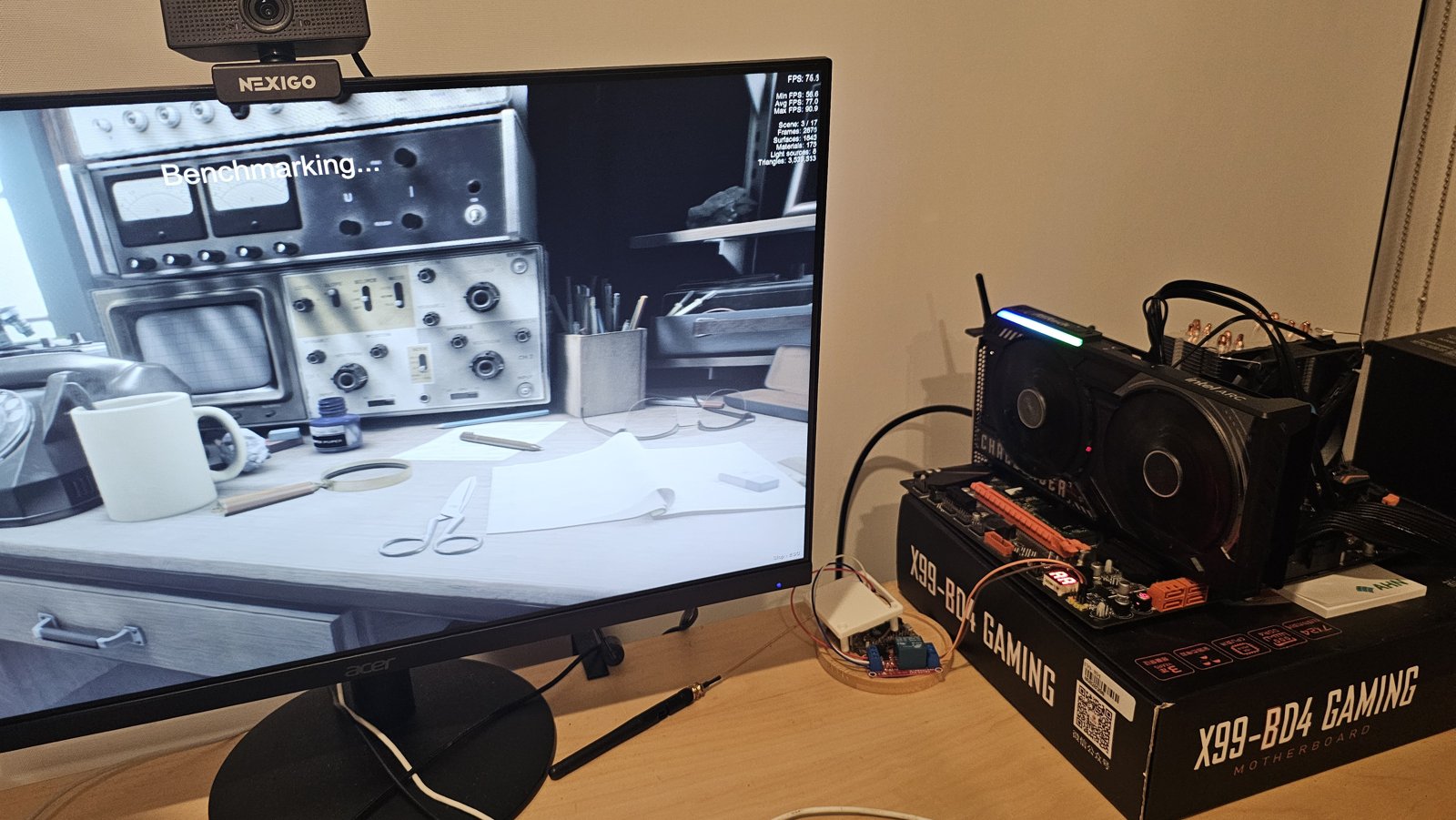

The X99-BD4 test bench running a benchmark with the Arc B580 The X99-BD4 test bench running a benchmark with the Arc B580 Unigine Superposition 1080p High result of 9182 Unigine Superposition 1080p High result of 9182

I haven't tried a larger ReBarState value yet (32 for unlimited), which would let the full 12 GB of VRAM map at once.

If you're doing this yourself

Diff the patched image against your original dump before flashing. UEFITool's tree view looked completely normal, and only the binary compare showed the 16-byte wipe. Check every volume while you're at it, since UEFITool 0.28 can rebuild ones you never edited. And keep a full 16 MB backup and flash only the BIOS region, so the descriptor and ME stay out of harm's way.
